Lifelike jewelled gecko: colour separated by hand

‘Jewel Gecko - New Zealand’ eight colour T-shirt print on dark green fabric.
‘Jewelled Gecko – New Zealand’ eight colour T-shirt print on dark green fabric. Placement; Eight colour front print, one colour kowhaiwhai print front and back around hem.
Art for reproduction. Shaun Waugh at the drawing board uses a 0.35mm Rotring technical pen to illustrate the Jewelled Gecko (Naultinus Gemmeus) in a pointillist illustration style onto a dimensionally stable sheet of translucent mylar substrate. Right photo: Shaun charcoal drawing on coquille board the dark green colour-separated layer of the Jewelled Gecko ten colour art.
Tracing method. This process is performed using a lightbox where light shines through the reference highlighting the areas to be drawn in a careful pointillist method with a Rotring pen onto Mylar film or charcoal pencil onto coquille board.
Art for reproduction. Shaun Waugh at the drawing board uses a 0.35mm Rotring technical pen to illustrate the Jewelled Gecko (Naultinus Gemmeus) in a pointillist illustration style onto a dimensionally stable sheet of translucent mylar substrate. The original illustration is rendered in landscape orientation at an enlarged size, 600 x 450mm.
How it’s done. The Photolitho craft technique of punched registration of the eight hand separated designs is vital to create all eight of the layers “in register” at the drawing & painting stage.
Painting the Maori kowhaiwhai design onto a sheet of translucent Mylar using a No.3 sable brush, ‘Plum tree’ photo opaque fluid and a drawing bridge. This painted design is printed around the waistband of the shirt, front and back to complete the Jewelled Gecko garment print.
Painting the Maori kowhaiwhai design printed around the garment’s hem onto a sheet of translucent Mylar using a No.3 sable brush, ‘Plum tree’ photo opaque fluid and a drawing bridge.
Left photo: Shaun applies spray adhesive to the the ten smooth vinyl topped aluminium screenprinting pallets wearing a respirator mask. Right photo: Deborah loads the pallets with blank white teeshirts in preparation for printing. Chrissie is loading the 8 screenprinting stencil frames with their respective inks.
Shaun applies spray adhesive to the printing pallets, Deborah McDonald places the T-shirts. If designs like the base light green are touch dry between each screen pass then wet ink areas “offset” onto the underside of the next screen, which in turn causes the cotton fabric to adhere to the screen and then lift… aaargh! Chrissie Terpstra in the background is loading the 8 screenprinting stencil frames with their respective inks.
Starting at print station one, Deborah hand screenprints the first colour, light green onto the front of the white, 100% cotton New Zealand made teeshirt.
Eight colour designs were printed in editions of 80—100 garments per day. Starting at print station one, Deborah hand screenprints the first colour, light green onto the front of the locally made pure cotton teeshirt.
hrissie follows Deborah printing the first colour down the row of 10 printing stations with ‘Flash Gordon’, our custom designed ink ‘flash-cure’ unit on wheels.
Chrissie Terpstra follows Deborah McDonald printing the first colour down the row of 10 aluminium & rubber composite printing stations with ‘Flash Gordon’, our customised water-based ink ‘flash-cure’ unit and high-efficiency nasty volatiles extractor unit on wheels.
Chrissie prints the third colour, orange.
Chrissie prints the third colour, orange, then as Deborah moves Flash Gordon from station to station in-sync with a 30-second timer, Chrissie uses a paint-stripping gun to dry off print’s most saturated areas.
Jewelled Gecko 8 colour print - Chrissie hand screenprinting the 8th colour
Chrissie follows Deborah printing red with super opaque metallic golden eyes and scale detail. After “flashing off” the wet inks, next minute Chrissie prints the black to finish the design.
Chrissie proofs each black design while the ink is still wet and manually touches up the black to ensure it is solidly covering where it is supposed to cover.
A stickler for detail Chrissie proofs each black design while the ink is still wet and manually touches up the black to ensure it is solidly covering where it is supposed to cover. Deborah follows with Flash Gordon, strips the printed shirts off and reloads with the next set of set of blank tees.
Final heat cure of the print on the pallet, stripping the finished Tees off and reloading the next run of 10. This process start to finish took two people labouring hard-out for 45 minutes
Final heat cure of the print on the pallet, stripping the finished Tees off and reloading the next run of 10. This process start to finish took two people labouring hard-out for 45 minutes. A lunch break from this hard labour on your feet the whole time was essential, sit-down lunches at the table which amazing Chrissie Terpstra cooked for our crew of Screen Gems every single day! Morning and afternoon coffee/tea and snacks were delivered and consumed on the fly.
Surface Active T-shirt swingtag front.
Surface Active T-shirt swingtag front.
Surface Active T-shirt swingtag back.
Surface Active T-shirt swingtag back.
Jewelled_Gecko_mail_order_catalogue_14
Jewelled_Gecko_mail_order_catalogue_13

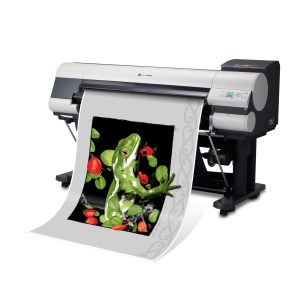

Jewelled Gecko Giclée on light grey matt background, A1 size (120cm x 84cm), shown being output from a wide-format inkjet printer. Illustration, New Zealand wildlife art.
Jewelled Gecko Giclée on white background, A1 size. Illustration, New Zealand wildlife art.

Hyper-real graphics like the Jewel Gecko make a vivid impression. Why? Because people relate to them! Dramatic lifelike renderings of wildlife produce a prompt and typically positive response in a person’s mind. People relate to real things and enjoy them most. It is the route to why people relate to many of our eye-catching and impactful “SurfaceActive” wildlife-art-to-wear designs.

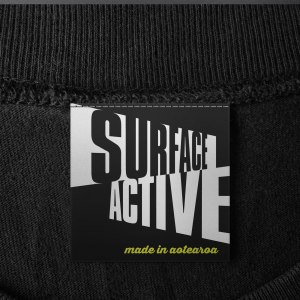

Surface Active made in Aotearoa, T-shirts main neck label.

Surface Active art-to-wear: making waves in a sea of sameness.

The technique of colour separating this design by hand (Shaun) involved breaking it down into eight separate designs, from which the screens were made. The separations are printed over each other, in layers to create the original hand screen printed design (Chrissie). This crafty route is the only way to achieve the unparalleled vibrancy and fine detail that creates the vivid impression of the designs that comes to life on the garments.

Surface Active was an auto-printmaking, craft and design studio established in 1986 by design pARTners Shaun Waugh (boss) and Chrissie Terpstra (bossier). Between 1986–2002 we were committed to producing original & indigenous garments of the highest design and screenprinting craft standards, providing a more interesting and beautiful product than your average tee—wearable art that celebrates the unique assets of New Zealand on pure cotton garments made in Canterbury, for New Zealanders and beyond.

As Chrissie wrote in the intro to our 1995 mail order catalogue;“It is a great job and we get to do it!”

Jewelled Gecko: from wildlife art for T-shirt it comes to life on a limited edition fine art print by Surface Active

Jewelled Gecko Giclée on light grey matt background, A1 size (120cm x 84cm), shown being output from a wide-format inkjet printer. Illustration, New Zealand wildlife art.The original screen printing hand separations are being digitally remastered carefully by hand as high resolution digital fine art prints. The Jewelled Gecko is the first of these designs to be completed.

The Jewelled Gecko Giclée s an Archival Digital Pigment Print on Museum Grade Fine Art Paper, to be published in a signed, limited edition of 50.

This portfolio of wildlife art Giclée is a work in progress, please visit again…


Credits


Crafty screenprinters: Deborah McDonald, Chrissie Terpstra
Gecko Illustration reference photos: Rod Morris
Illustrator: Shaun Waugh
Design and Art Direction: Design pARTners Chrissie Terpstra & Shaun Waugh
